Applicable Materials

Pharmaceuticals: pills, capsules, Chinese medicinal materials, pharmaceutical raw materials, etc.;



KOH、NaOH、carbon black, titanium dioxide, iron oxide, ceramic powder, kaolin, silica gel powder, activated carbon, etc.;



polyethylene, polyvinyl chloride, polyamide, etc.



coffee, tea, puffed food, peanuts, almonds, flour, starch, grains, milk powder, food additives, etc.;



Key Advantages

/ 01

No dust leakage

Fully enclosed conveying system; Mechanical structure designed according to pressure requirements; Pressurized inert gas protection can be used when conveying materials;

/ 02

Low accumulation

The reversible discharge port is used to solve the problem of material accumulation at the discharge port of the tube chain conveyor; Optimized main drive box and driven box reducer to prevent the crushing of materials by the conveying tray in the box;

/ 03

Low material degradation

Special corner wheels are used at the corners of the pipeline to effectively reduce the wear of the conveyor chain and the fragmentation of materials at the corners; Reduce material crushing and squeezing according to the conveying speed adjusted to the material; Optimized main drive box and driven box reducer to prevent the crushing of materials by the conveying tray in the box;





Application Industry

Chemical Industry

Fine Chemical Industry

New Energy Industry

Pharmaceutical Industry

Food Industry





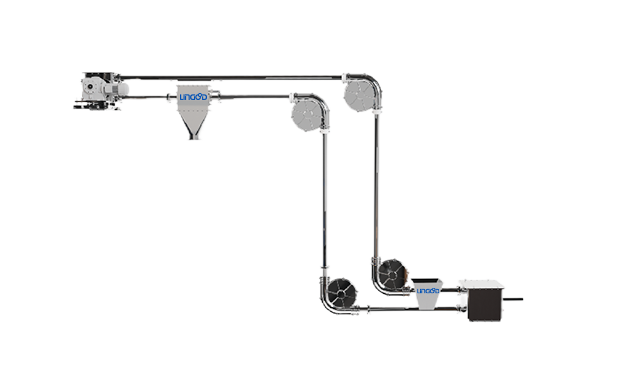

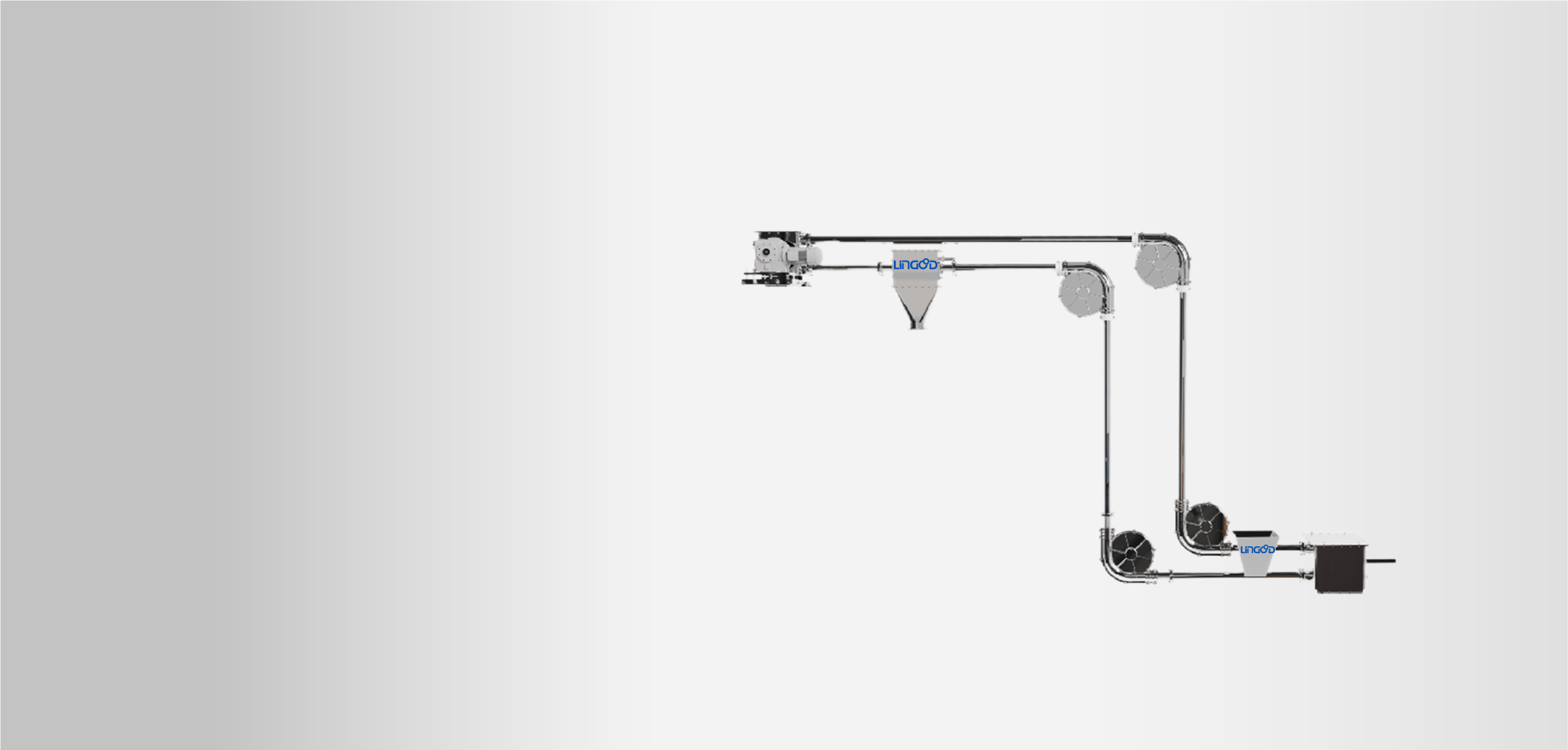

Tube Chain Conveyor

Series	TGL80	TGL100	TGL125	TGL150
Diameter (mm)	89	108	133	159
Conveying distance (mm)	0~60	0~60	0~60	0~60
Conveying capacity m³/h (depending on conveying distance)	2～5	4～8	3～10	8～25
Power (kW)	≤4	≤5.5	≤7.5	≤11
Material of construction	Tube: 304/SUS316; Chain: 16Mn; Chain plate: nylon/food grade nylon;
Optional Configuration	A variety of self-cleaning options are available (disc brush box cleaning/inner wall brush around the edge of the disc, etc.) Multiple feeding and unloading points are optional.
